$815.00 Inc. GST

Product Code: SG-S0593 Categories: , , Tag:
  • SigilVentus

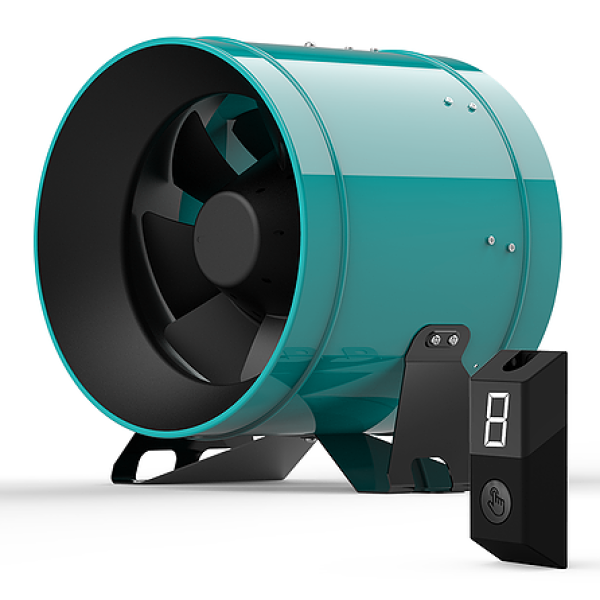

SIGILVENTUS EC MIXFLOW INLINE FAN is an extremely low profile inline fan with jet-engine blades design and metal housing. Combined with an EC motor for no-humming, no vibration, smooth operation and the most energy efficient performance.

It is an outstanding fan in the market because of its high efficiency, resulting from a built-in multiphase brushless DC motor design, sending this compact inline fan to high speeds and a high static pressure rating as well as maintaining a lower level of power consumption.

Included in the box is an 8 speeds controller for maximum flexibility.

We also offer optional wireless controller or smart controller which are  sold separately.


  • AV equipment and Server rooms
  • Closets and Cabinets
  • Hydroponic Indoor Grow System and Poultry Ventilation
  • Bathrooms and Attics Exhaust
  • Odorless Hotpot or BBQ Ventilation System
  • 4G OR 5G Telecom Signal Station Ventilation and Cooling
  • Vertical Farming System
  • UVC Sterilization Systems Against Covid-19


Model SE-A315-T01
Fan Size 12″ |315MM
Rated Voltage 220V~240V
Max. Power C. 320W
Frequency 50Hz~60Hz
Max. Speed 3000RPM
Max. Airflow 1757CFM
Static Pressure 677Pa
MAX. Noise 78dBA [1M-INLET]
Signal Outputs PWM, 0-10V, POT, FG
Material Steel & PA
Bearing System NMB or NSK Ball
Impeller Design Mixed Flow
Motor Type EC Motor
Net Weight 8kgs
IP Rating IP65
Bracket Type Detachable
Certifications CE, SAA, ERP



A detachable fast clamp is one of our recommended selected accessory for hard/PVC duct installation, which can be detached from the fan for easy cleaning, maintenance, and repair.

For more information go to

Additional information

Weight 10.38 kg
Dimensions 41 × 34.5 × 41 cm
