SIGILVENTUS EC MIXED FLOW INLINE FAN 355mm
$1,300.00 Inc. GST
Product Code: SG-S1309
Categories: Environmental Control, Fans, SigilVentus Fans
Tag: SIGILVENTUS
Manufacturer:
- SIGILVENTUS
Description

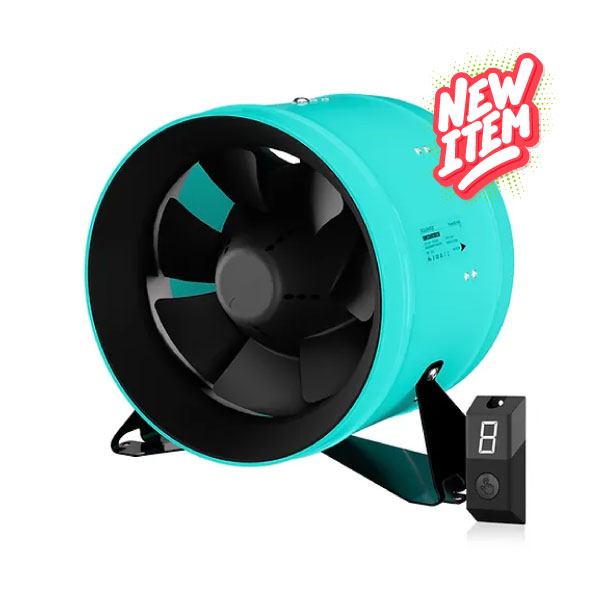

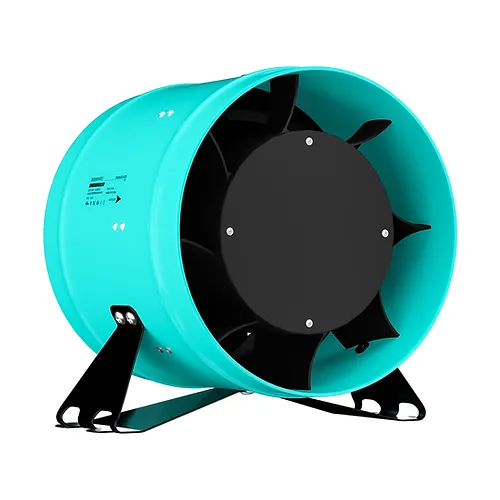

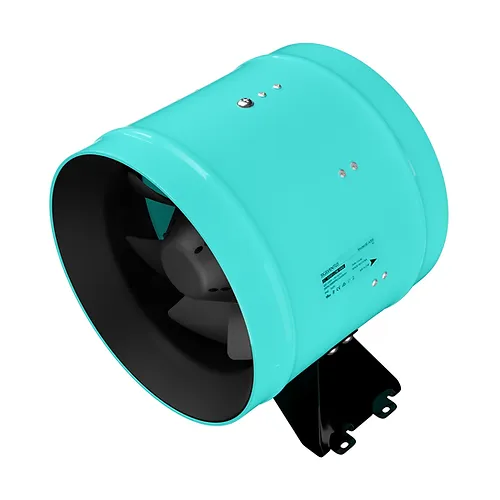

SIGILVENTUS 355mm EC MIXFLOW INLINE FAN is extremly low profile inline fan with jet-engine blades design and metal housing combined with an EC motor for no-humming, no vibration, smooth operation and most energy efficient performance.
SPECIFICATIONS
| Model | SE-A355-T01 |
| Fan Size | 14″ | 355mm |
| Rated Voltage | 110V~120V | 220V~240V |
| Max. Power C. | 550W |
| Frequency | 50Hz|60Hz |
| Max. Speed | 3000RPM |
| Max. Airflow | 2570CFM | 4369M³H |
| Static Pressure | 92mmH²O | 902Pa |
| Max. Noise | 80dBA [1M-INLET] |
| Signal Outputs | PWM, 0-10V, POT, FG |
| Housing Material | Steel |
| Bearing System | NMB or NSK Ball |
| Impeller Design | Mixed Flow |
| Motor Type | EC Motor |
| Net Weight | 11.5kgs |
| IP Rating | IP65 |
| Bracket Type | Detachable |
| Certifications | ETL, CE, SAA, ERP, HVI |
