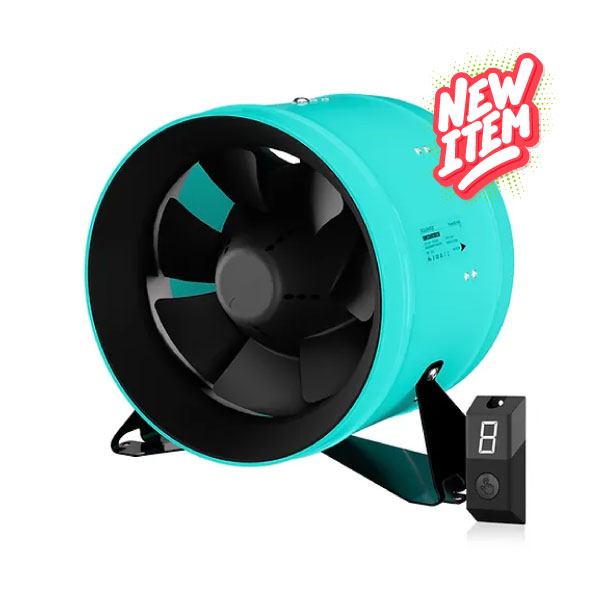

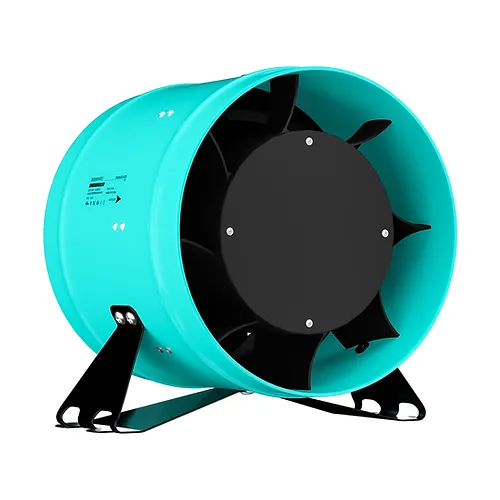

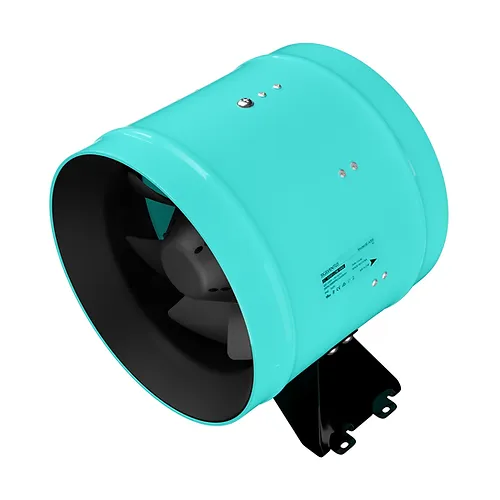

SIGILVENTUS EC MIXED FLOW INLINE FAN 355mm

$1,300.00 Inc. GST

Product Code: SG-S1309 Categories: , , Tag:
Manufacturer:
  • SIGILVENTUS
Find A Retailer

Description

SIGILVENTUS 355mm EC MIXFLOW INLINE FAN is extremly low profile inline fan with jet-engine blades design and metal housing combined with an EC motor for no-humming, no vibration, smooth operation and most energy efficient performance.

SPECIFICATIONS

Model SE-A355-T01
Fan Size 14″  | 355mm
Rated Voltage 110V~120V | 220V~240V
Max. Power C. 550W
Frequency 50Hz|60Hz
Max. Speed 3000RPM
Max. Airflow 2570CFM | 4369M³H
Static Pressure 92mmH²O | 902Pa
Max. Noise 80dBA [1M-INLET]
Signal Outputs PWM, 0-10V, POT, FG
Housing Material Steel
Bearing System NMB or NSK Ball
Impeller Design Mixed Flow
Motor Type EC Motor
Net Weight 11.5kgs
IP Rating IP65
Bracket Type Detachable
Certifications ETL, CE, SAA, ERP, HVI
